Smart Pressure Transmitter with Display SPT-ED-460

Smart Pressure Transmitter with Display SPT-ED-460

SPT-ED-460 is a high accuracy and stability smart pressure transmitter. It adopts oil-filled sensor and ADI chip with microprocessor technology. SPT-ED-460 features field display, RS-485 or HART digital output, data process, zero & span adjustment, which is suitable for accurate fluid pressure measurement.

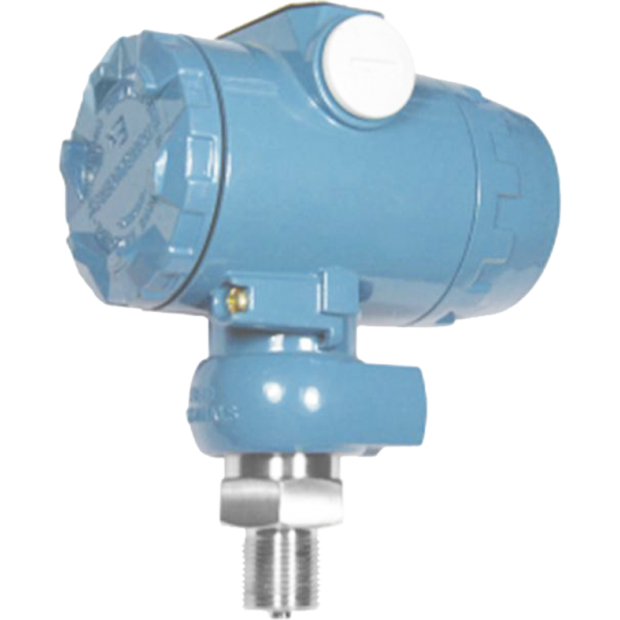

  • Smart Pressure Transmitter with Display.png

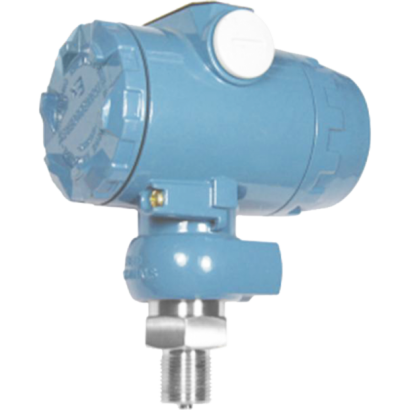

  • Smart Pressure Transmitter with Display.png
DETAIL
Smart Pressure Transmitter with Display
Model: SPT-ED-460


Introduction
SPT-ED-460 is a high accuracy and stability smart pressure transmitter. It adopts oil-filled sensor and ADI chip with microprocessor technology. SPT-ED-460 features field display, RS-485 or HART  digital output, data process, zero & span adjustment, which is suitable for accurate fluid pressure measurement.

Features
■ RS485 (standard) or HART digital output (option) ensure remote communication with computer
■ Support multiple remote control application

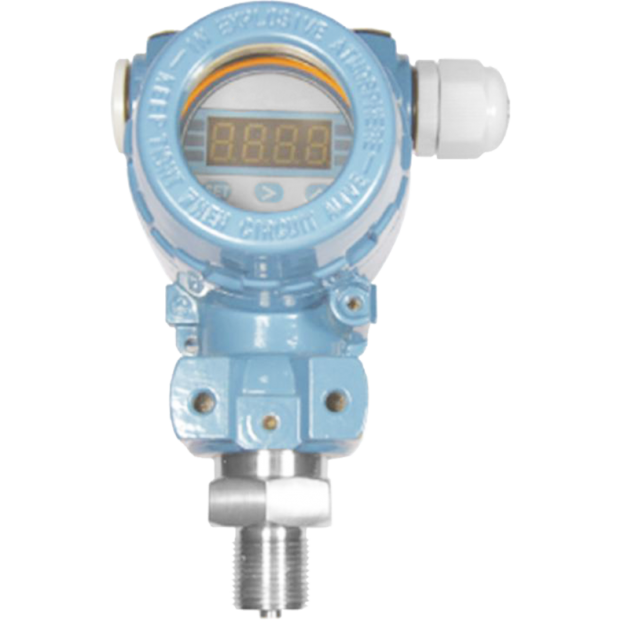

■ 4-digit LED screen, field reading display
■ High accuracy and sensitivity
■ No removable part ensures long service life
■ Wide pressure measurement range: -0.1⋯0~20kPa⋯100MPa
■ Anti-vibration & anti-impact design

Main Specifications
▼Pressure connection
M20 x 1.5
G1/2”
1/2”NPT
Material: SS304
▼Pressure range
-100kPa…0~20kPa…100MPa
▼Pressure type
Gauge pressure / Sealed gauge pressure / Absolute pressure
▼Applicable fluid
Gas and liquid that compatible with SS304
▼Operating temperature
-20 to 85℃
▼Storage temperature
-40 to 125℃
▼Anti-impact performance
100g (11ms)
▼Anti-vibration performance
20g (20-5000Hz)
▼Protection level
IP 65
▼Approval
CE certificate

Other Specifications
▼Housing
Copper-aluminum alloy
▼Power supply
24VDC / 12VDC
▼Output signal
4~20mA+RS485 (standard)
4~20mA+HART (option)
▼Screen display
4-digit LED display
▼Measuring elements
Pressure sensor & diaphragm
Material: SS316L
▼Zero & span temp. drift
±0.5% F.S. max. (@-20 to 85℃)
▼Accuracy
0.5% F.S. (standard) / 0.3% F.S. (option)
▼Stability
±0.2% F.S. / year
▼Response time
≤1ms (increase to 90%F.S.)
▼Insulation resistance
100MΩ, 250VDC
▼Compensated temperature
-10 to 70℃ / -20 to 85℃ (option)
▼Overpressure
1.5*F.S.
▼Other requests (Option)
Third party notarized documents
Inspection report
Tag
Thread adaptor: to adopt the other kind of thread
USB-RS485 Converter
