Digital Thermometer DTG-D series

Digital Thermometer DTG-D series

DTG-D digital thermometer with high accuracy 3-digit LCD can precisely display temperature without any visual error.
  • Digital Thermometer.png
  • Digital Thermometer.png
DETAIL

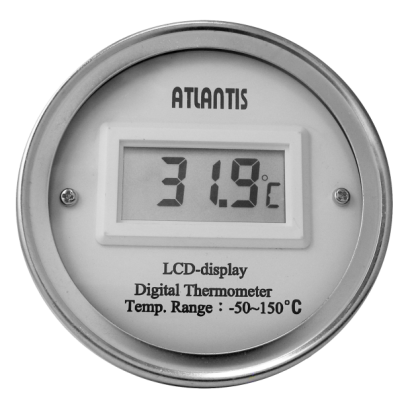

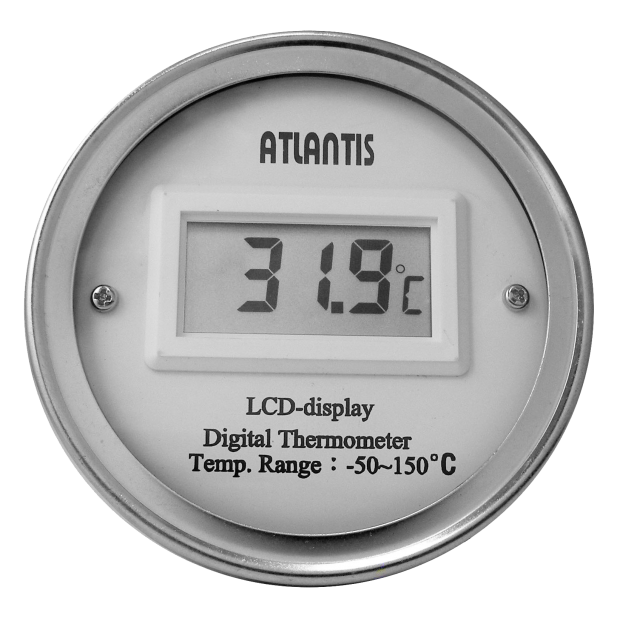

Digital Thermometer
Model: DTG-D series


Introduction
DTG-D digital thermometer with high accuracy 3-digit LCD can precisely display temperature without any visual error.

Features
■ OEM service
■ Accuracy ±1℃ in -20 to 80℃
■ LCD display ensures no visual error

Main specifications
▼Size
3”, 4”
▼Installation type

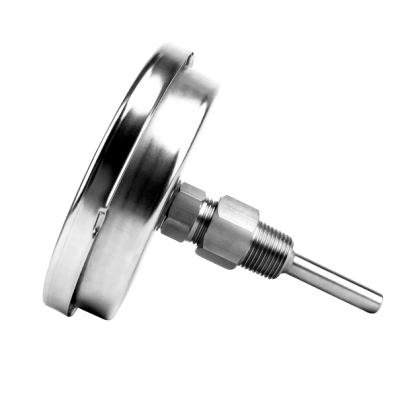

DT-Back mount
DI-Bottom mount
DA-Adjustable angle
▼Window
PC, with O-ring sealed
▼Process connection
Material: SS304
Thread size: 1/4”, 1/2”
Thread type: BSPT, NPT, PF
▼Stem
Material: SS316
Outer dia.: 7.4mm
Length: 4” (standard)
▼Temperature range
Min.: -50°C
Max.: +150°C
▼Applicable fluid
Liquid and gas that compatible with SS304
▼Ambient temperature
-20°C~+60°C

Other specifications
▼Ring
Stainless steel
Outside bayonet
▼Case
SS304
▼Display
3-digit LCD display
Resolution: 0.1
▼Refresh rate
10 secs/times
▼Power supply
1.5V mercury battery x2
▼Measuring elements
NTC thermistor
▼Accuracy
±1°C (-20 to 80°C)
±2℃ (-50 to -20°C, 80°C to 150°C)
