Digital Thermometer gauge

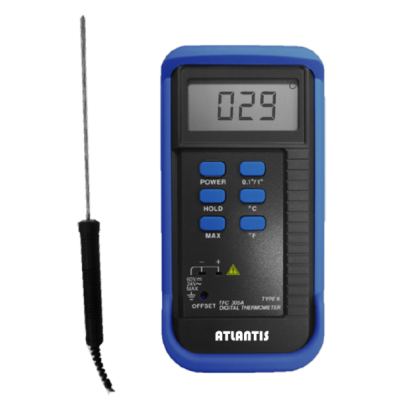

Handheld Thermocouple Thermometer ATFC-305A

Handheld Thermocouple Thermometer ATFC-305A

TFC-305A  Handheld Thermocouple Thermometer can connect with a Type K thermocouple. With its wide  temperature range measurement (-50 to +1300℃), ATFC-305A can apply to various industrial  environments.
DETAIL

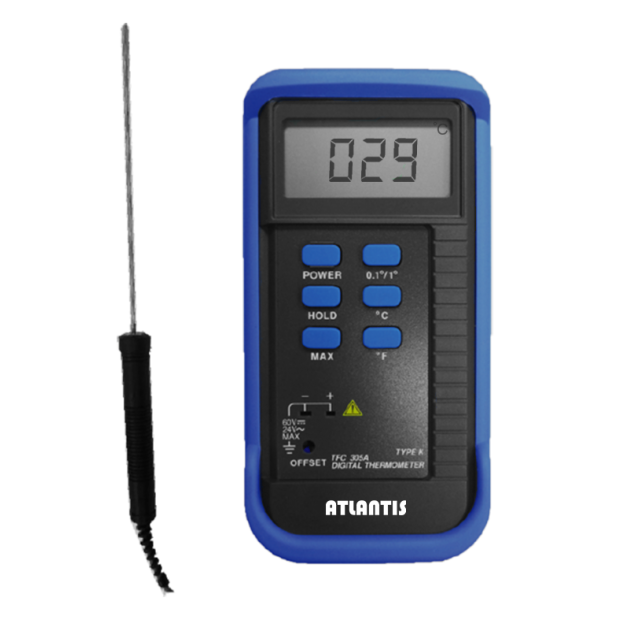

Handheld Thermocouple Thermometer
Model: ATFC-305A


Introduction
ATFC-305A  Handheld Thermocouple Thermometer can connect with a Type K thermocouple. With its wide  temperature range measurement (-50 to +1300℃), ATFC-305A can apply to various industrial  environments.

Features
■ 3.5-digit Large LCD screen display
■ High refresh rate - 2.5 times/sec
■ Switchable temperature units (℃/℉)
■ Switchable reading resolution (0.1, 1℃/℉)
■ With hold current reading function (HOLD)
■ Display measured max. temperature (MAX)
■ Temperature offset adjustment
■ Auto display overload (OL) when reading over1999
■ Auto low battery indication
■ With protective rubber case

Main specifications
▼Dimension
148 (L) x 71 (W) x 36 (H)mm
▼Screen display
3.5-digit LCD screen display
Max. reading 1999
Switchable temp. unit: ℃/°F
▼Temperature range
Min.: -50℃ (-58℉)
Max.: +1300℃ (2372℉)
▼Standard temperature
sensor specification (option)
One Type K thermocouple (with Teflon coating insulation)
Length: 4”
Max. insulation temp.: 260℃ (500℉)
Sensor accuracy: ±2.2℃ or
±0.75% readings (@0~800℃)
▼Ambient temperature
0 to 50℃ (32 to 112℉)
▼Storage temperature
-10 to 60℃ (14 to 140℉)
▼Ambient humidity
0 to 80%RH (0 to 35℃)
0 to 70%RH (35 to 50℃)
▼Accessory
Protective rubber case

Other specifications
▼Refresh rate
2.5 times/sec
▼Reading Resolution
1℃/℉,
0.1℃/℉
▼Power supply
9V battery
▼Current
About DC 2.8mA
▼Accuracy
When temp. -50 to 1000℃:
±0.3%Readings+1℃:
When temp. 1000 to 1300℃
±0.5%Readings+1℃
When temp. -58 to 1999℉
±0.3%Readings+2℉
▼Input protection
60VDC or 24VAC
▼Weight
210g (include battery)
