Digital Air Pressure Switch DPS-A1.0

Digital Air Pressure Switch DPS-A1.0

Features
■ OEM service
■ NPN/PNP alarm output available
■ 4-20mA signal output available (option)
■ Specially designed for air pressure measurement and control
■ Accuracy ±0.5%F.S.
■ Pipeline temperature measurement
■ Maximum pressure value record
 ■ Backlight on/off

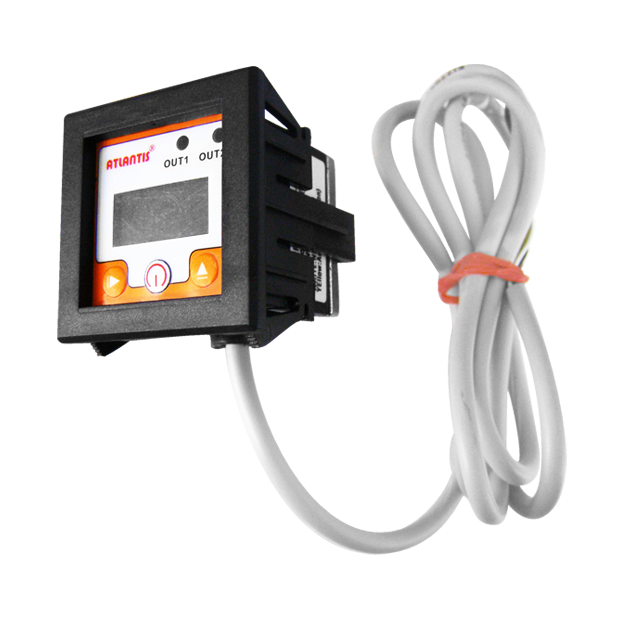

  • Digital Air Pressure Switch.png

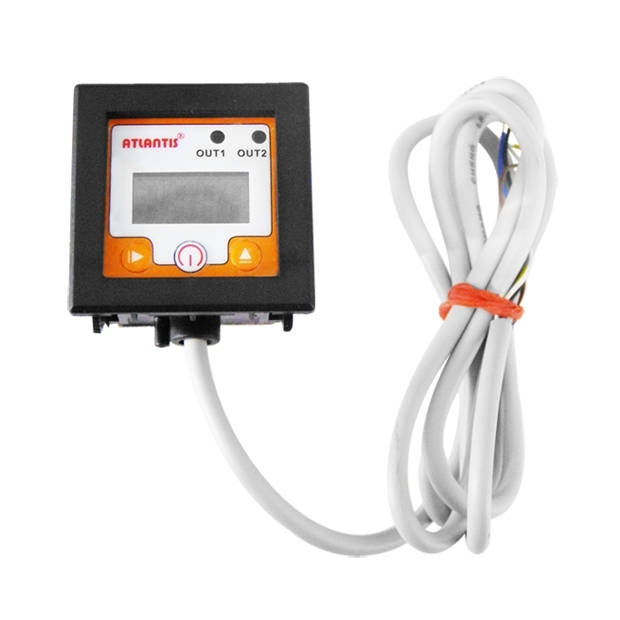

  • Digital Air Pressure Switch.png
DETAIL
Digital Air Pressure Switch
Model: DPS-A1.0


Features
■ OEM service
■ NPN/PNP alarm output available
■ 4-20mA signal output available (option)
■ Specially designed for air pressure measurement and control
■ Accuracy ±0.5%F.S.
■ Pipeline temperature measurement
■ Maximum pressure value record
■ Backlight on/off

Main Specifications
▼Size
1”(29.9 mm)
▼Pressure connection
Material: SS 304L
With O-ring sealed
1/8”PT (F)
1/8”NPT (F)
Other thread type available upon request
▼Pressure range
Positive pressure▼
0 to 10 bar
Negative pressure▼
-760…0mmHg
Compound pressure▼
-760mmHg to 10bar
▼Switch alarm output
NPN (standard)/PNP (option)
Hysteresis mode/Window comparator mode
▼Switch signal output (option)
4-20 mA/1-10V
▼Applicable fluid
Pure, non-corrosive gases
▼Ambient temperature
-40°C to +60°C
▼Fluid temperature
-10°C to 60°C
▼Ambient humidity
95% R.H.
▼Atmospheric pressure
860…1060 mbar
▼Temperature error
Standard temp.: 22℃
max. error: ±0.5% F.S
(0~50℃)

Other Specifications
▼Ring
ABS
Screw fixed
▼Case
ABS
▼Screen display
4-digit LCD with backlight
▼Power supply
DC 8-28V
Recommended voltage: DC 24V
▼Refresh rate
1 sec/times
▼Screen size
19*8 mm
▼Pressure unit
psi, bar, kg/cm2, MPa
▼Vacuum unit
cmHg, inHg, kPa, atm
▼Resolution
0.001
▼Measuring elements
High-tech silicon chip SS 316L diaphragm
▼Accuracy
±1%F.S. (@0~50°C)
▼Operating pressure
Burst pressure: 2.5* full scale
▼Compensated temperature
0°C to 50°C
▼Weight
80g
