Digital Precision Pressure Gauge AT803

Digital Precision Pressure Gauge AT803

The accuracy of AT803 digital precision pressure gauge can up to 0.02%, which is suitable for high precision pressure measurement such as field and laboratory pressure measurement and calibration.
  • Digital Precision Pressure Gauge.png
  • Digital Precision Pressure Gauge.png
  • Digital Precision Pressure Gauge.png
  • Digital Precision Pressure Gauge.png
DETAIL

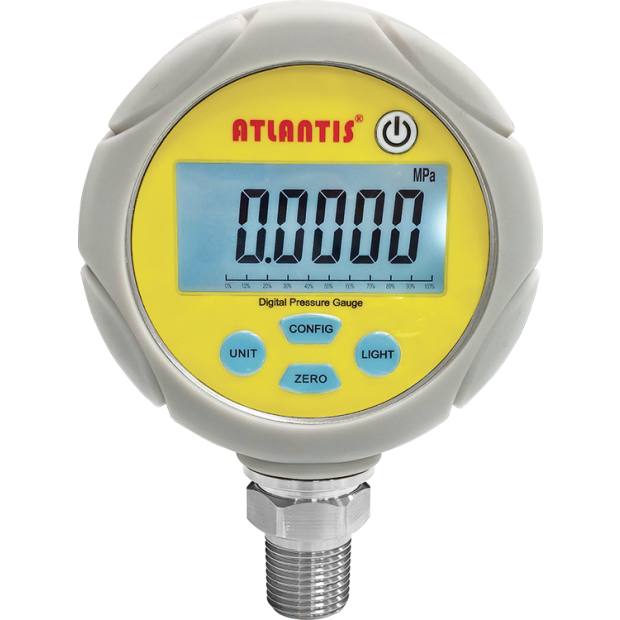

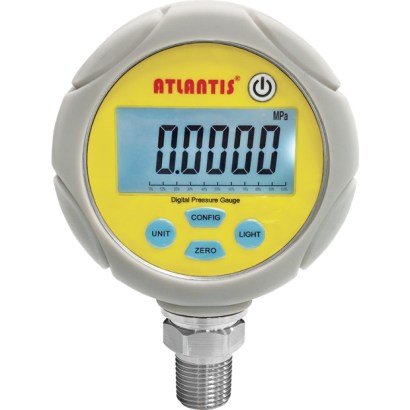

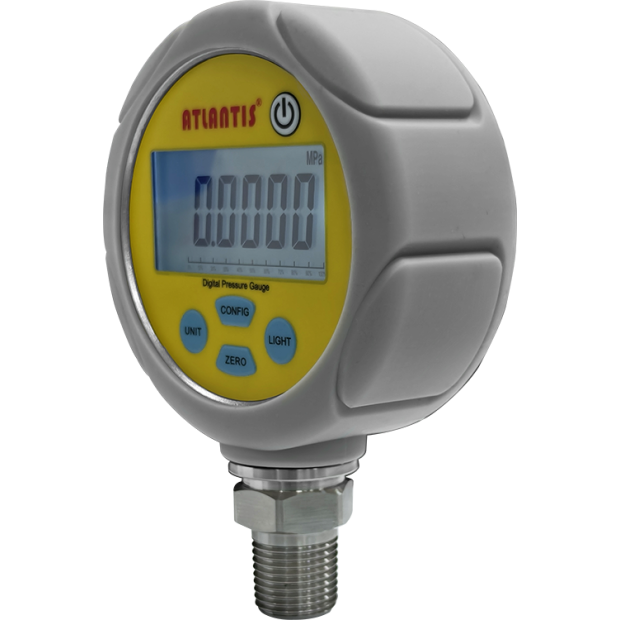

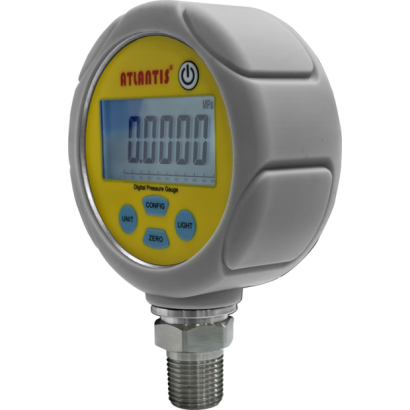

Digital Precision Pressure Gauge
Model: AT803


Introduction
The accuracy of AT803 digital precision pressure gauge can up to 0.02%, which is suitable for high precision pressure measurement such as field and laboratory pressure measurement and  calibration.

Features
■ OEM service
■ High accuracy - up to 0.02%
■ 5- or 6-digit LCD display with backlight
■ Zero adjustment button
■ Low power consumption - continually operate over 10000 hours
■ Large display screen 58 x 29 mm
■ Switchable pressure units: mmH2O, mmHg, kgf , kPa, MPa, psi, bar, mbar

Main Specifications
▼Size
3.7”
Thickness: 41mm
▼Pressure connection
Material: SS316
Laser welding
Size: 1/2”PT
Other thread type available upon request
▼Pressure range
Please refer to pressure range and accuracy table
▼Applicable media
Liquid and gas that compatible with SS 316/ Pure, non-corrosive gas
▼Ambient temperature
-20°C to +70°C
▼Storage temperature
-40°C to +85°C
▼Media temperature
-10°C to +50°C
▼Ambient humidity
95% R.H.
▼Atmospheric pressure
860…1060 mbar
▼Temperature drift
Standard temp.: 20℃
max. error: ±0.1% F.S (@0~50℃)
▼Accessory
Power Supply

Other Specifications
▼Ring
Aluminum die casting
▼Case
Aluminum die casting
▼Screen display
5-digit LCD (0.1%/0.2%)
6-digit LCD (0.02%/0.05%)
White backlight
▼Refresh rate
Adjustable refresh rate:
3 times/1sec to 1 times/10secs
▼Screen size
58 (W) x 29 (H) mm
▼Pressure unit
mmH2O, mmHg, kgf , kPa, MPa, psi, bar, mbar
▼Resolution
0.0001

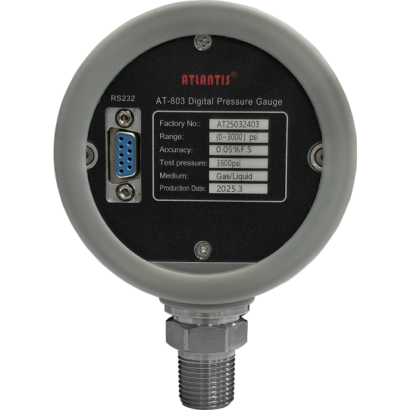

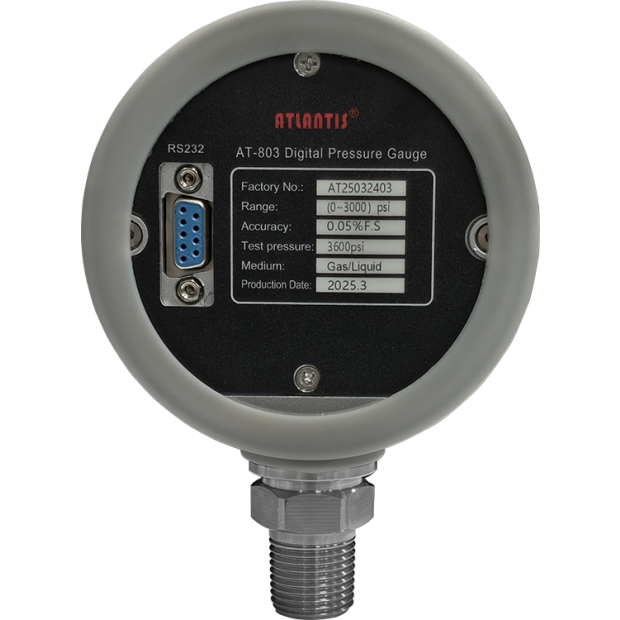

▼Communication port (option)
RS232
▼Measuring elements
High-tech silicon chip SS 316L diaphragm
▼Accuracy
Please refer to pressure range and accuracy table
▼Overpressure
Please refer to pressure range and accuracy table
▼Compensated temperature
0°C to 50°C
▼Power supply
AA batteries x3/DC 9V (2A)
▼Battery life
Please refer to battery life table
▼Weight
450g
