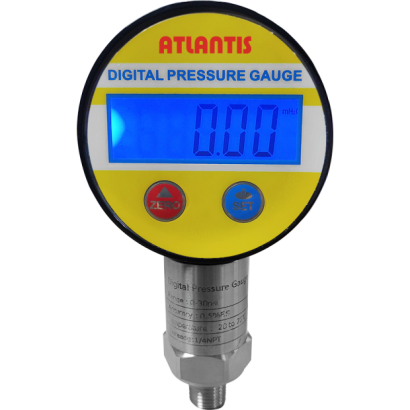

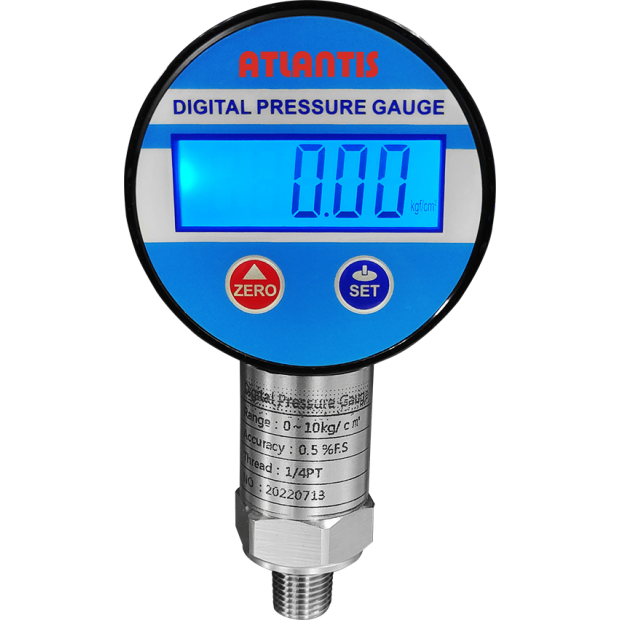

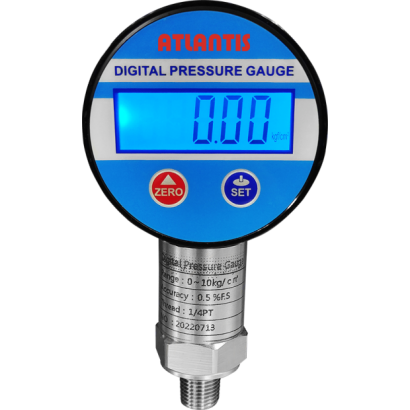

Digital Pressure Gauge DPG-S2.5

Digital Pressure Gauge DPG-S2.5

DPG-S2.5 digital pressure gauge adopts piezoresistive silicon chip with high integrated circuit design. No moveable parts ensuring its long service life. High stability pressure sensor with high accuracy measurement makes DPG-S2.5 is suitable for measuring gas and liquid pressure on medical equipment or pneumatic machine.
  • Digital Pressure Gauge.png
  • Digital Pressure Gauge.png
DETAIL
Digital Pressure Gauge
Model: DPG-S2.5


Introduction
DPG-S2.5 digital pressure gauge adopts piezoresistive silicon chip with high integrated circuit design. No moveable parts ensuring its long service life. High stability pressure sensor with high accuracy measurement makes DPG-S2.5 is suitable for measuring gas and liquid pressure on medical equipment or pneumatic machine.

Features
■ OEM service
■ Economic digital pressure gauge
■ 4-digit LCD display with blue backlight
■ High integrated circuit ensuring its high stability

Main Specifications
▼Size
2.5”(66mm)
▼Pressure connection
Material: SS304
1/4”PT
1/4”NPT
Other thread type available
upon request
▼Pressure range
Gauge pressure▼
0…1 to 600bar
Vacuum pressure▼
-1…0bar
▼Applicable fluid
Liquid and gas that compatible
with SS 304
▼Ambient temperature
-20°C to +85°C
▼Fluid temperature
-10°C to 60°C
▼Ambient humidity
95% R.H.
▼Atmospheric pressure
860…1060 mbar
▼Temperature error
Standard temp.: 22℃
max. error: ±0.5% F.S (@0~50℃)
▼CE certificate
EN61326-1:2013

Other Specifications
▼Ring
ABS
Screw fixed
▼Case
ABS
▼Screen display
46 x 15 mm
4-digit LCD with blue backlight
▼Refresh rate
3 times/sec
▼Pressure unit
≦100psi▼
psi, mH2O, mmHg, mbar, kPa
≧160psi▼
psi, bar, kg/cm2, MPa, atm
▼Resolution
0.001
▼Measuring elements
Piezoresistive silicon chip
SS 316L diaphragm
▼Accuracy
±1.0%F.S. (standard)
±0.5%F.S. (options)
▼Operating pressure
Overpressure: 1.5* full scale
Burst pressure: 3* full scale
▼Compensated temperature
-20°C to 75°C
▼Operating current
Max. 10mA
▼Power supply
AAA battery x2/5~12VDC external power supply
▼Battery life
Two years at auto power
off mode
▼Service life
200,000 times
▼Weight
310g
